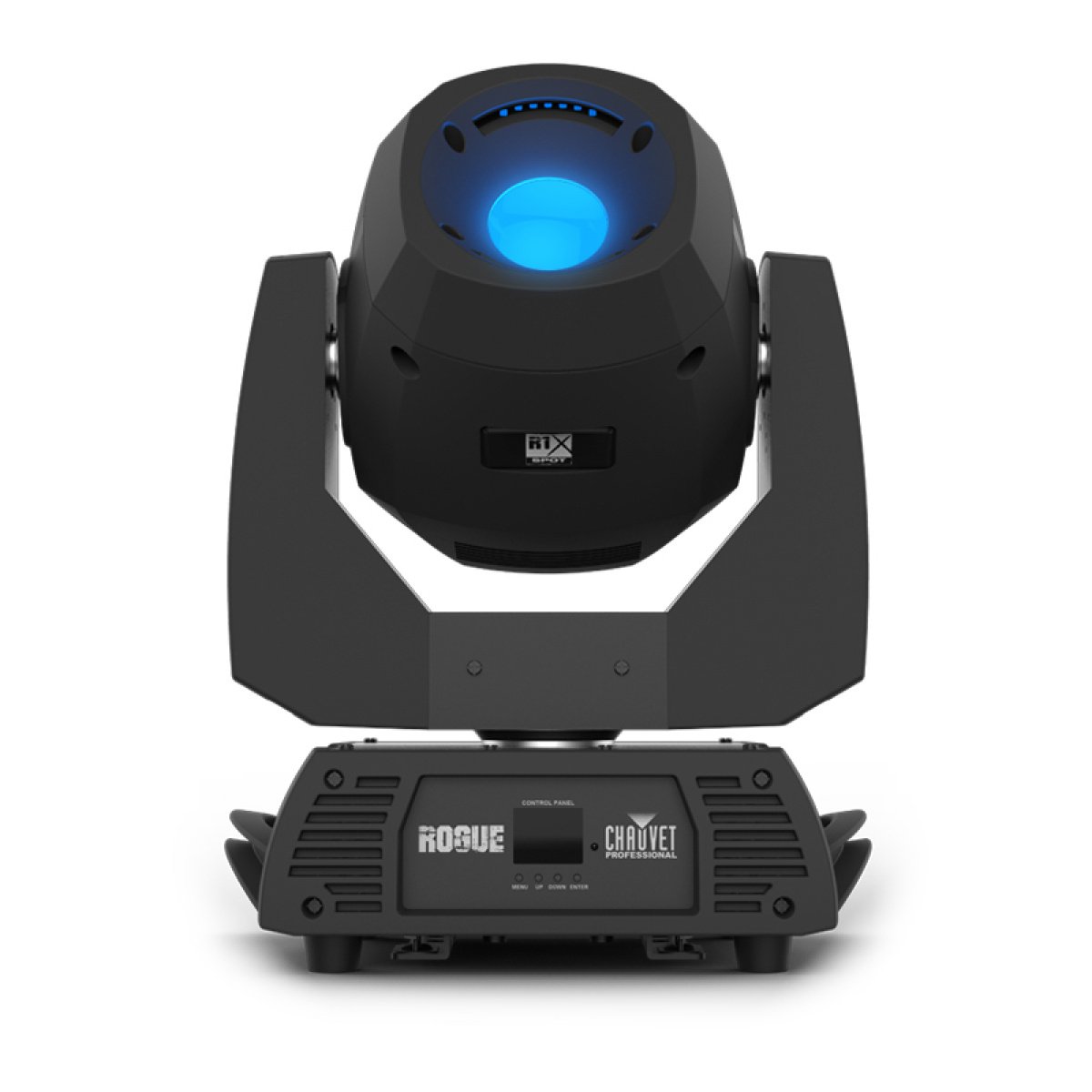

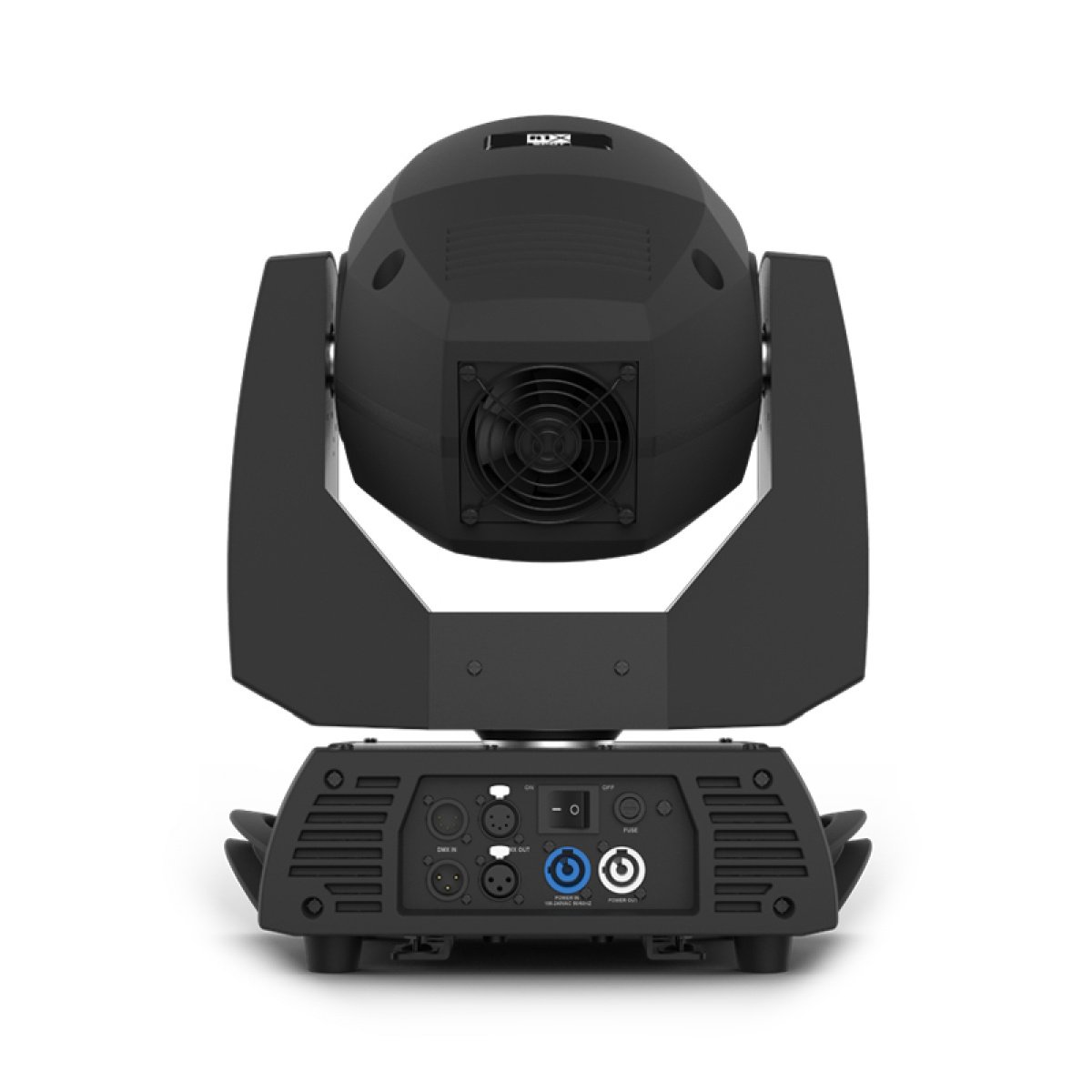

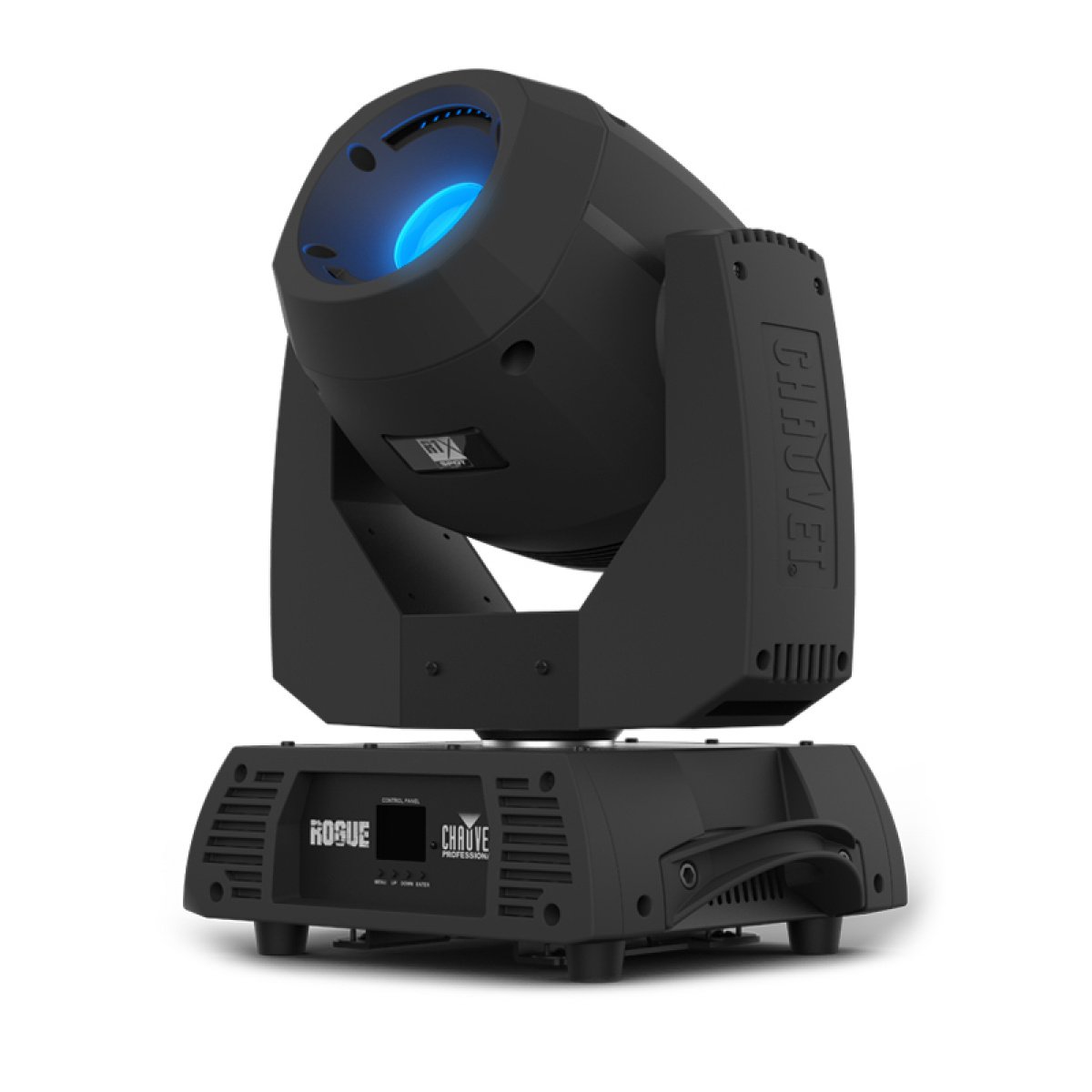

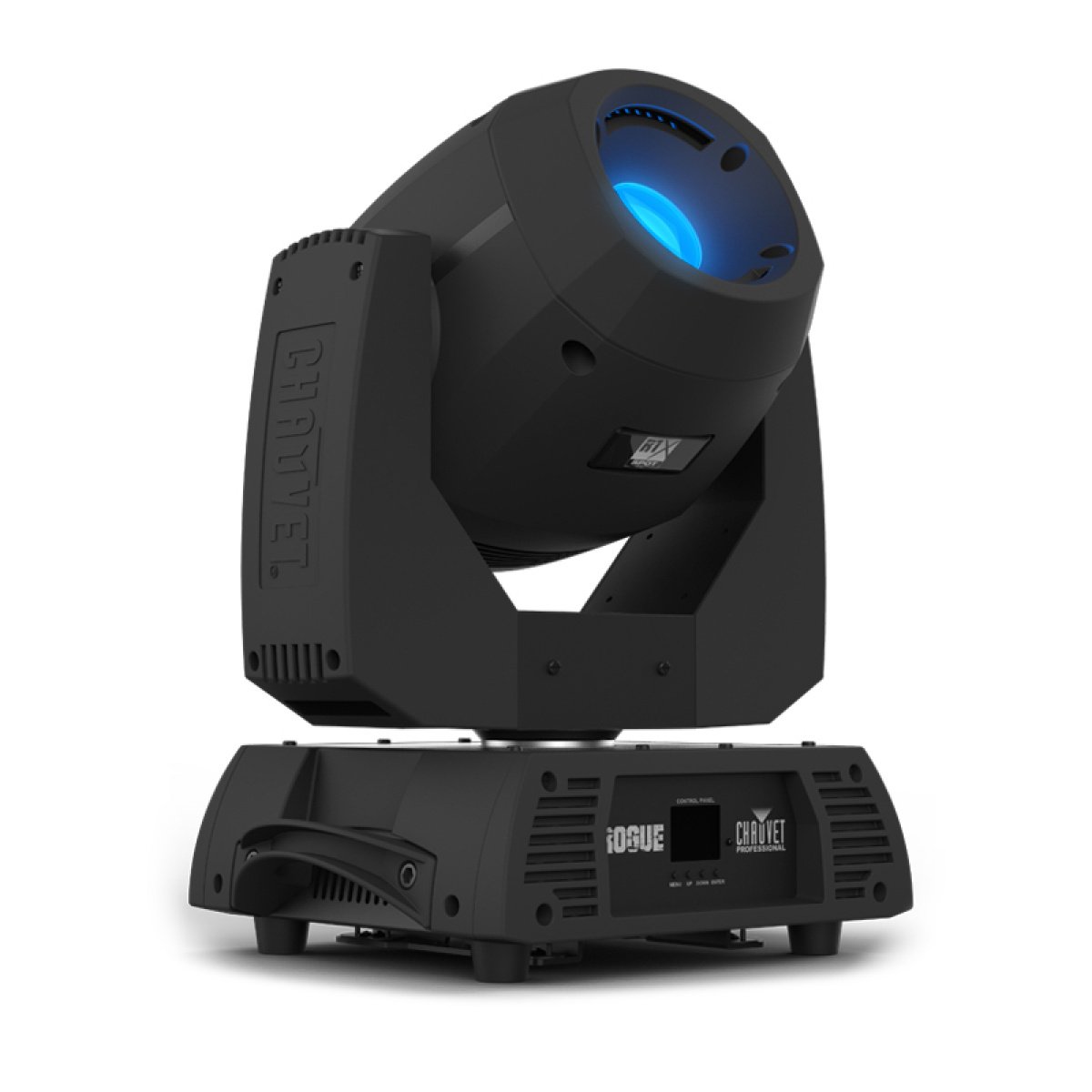

Chauvet Professional- Rogue R1X Spot

Specifications
Optical

Light Source: 1 LEDs (CW) 170 W, (7.4 A), 8847 K, 50,000 hours life expectancy
Color Temperature (at full): 8847 K
Front lens diameter: 65 mm
CRI: 75.2
Beam Angle: 14°
Field Angle: 15.6°
Cutoff Angle: 15.9°
Lumens – Source: 12,000
Lumens – Output: 5,479
Illuminance (total): 4,388 lux @ 5 m
Selectable LED Power output: 50-100
Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
powerCON extension cables
UPLOAD 08 software uploader

Dynamic Effects

Pan and Tilt: 540°/250°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal),continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes
