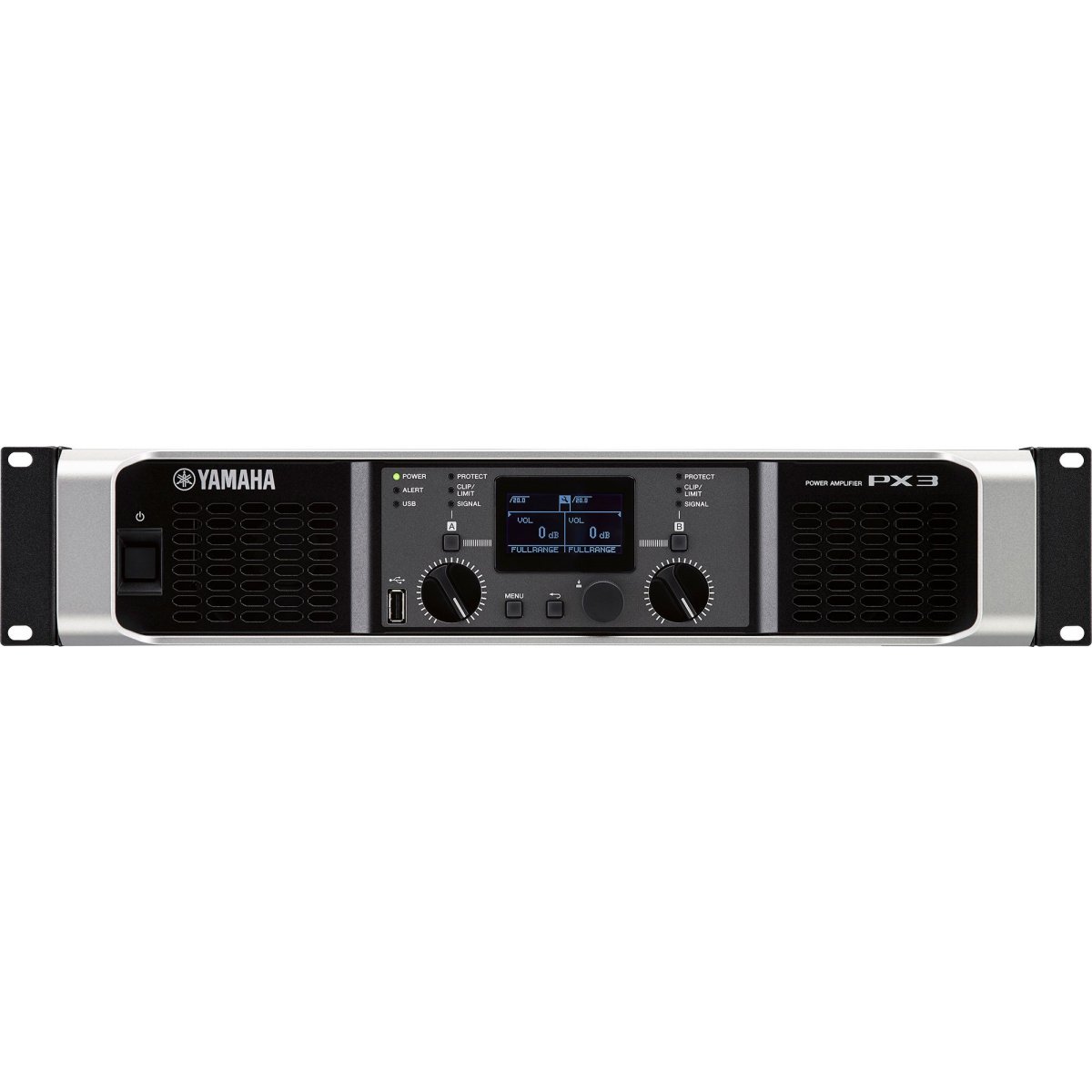

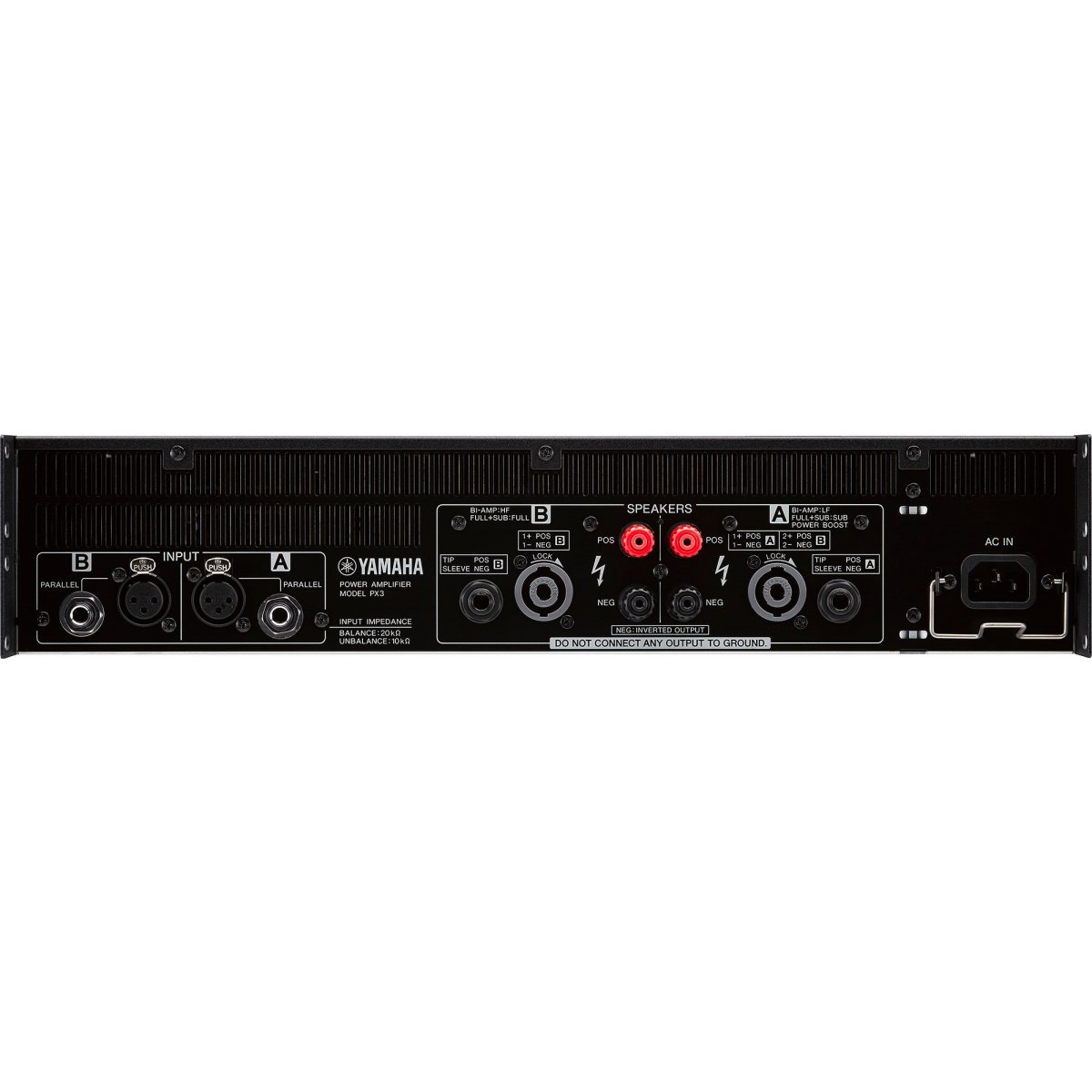

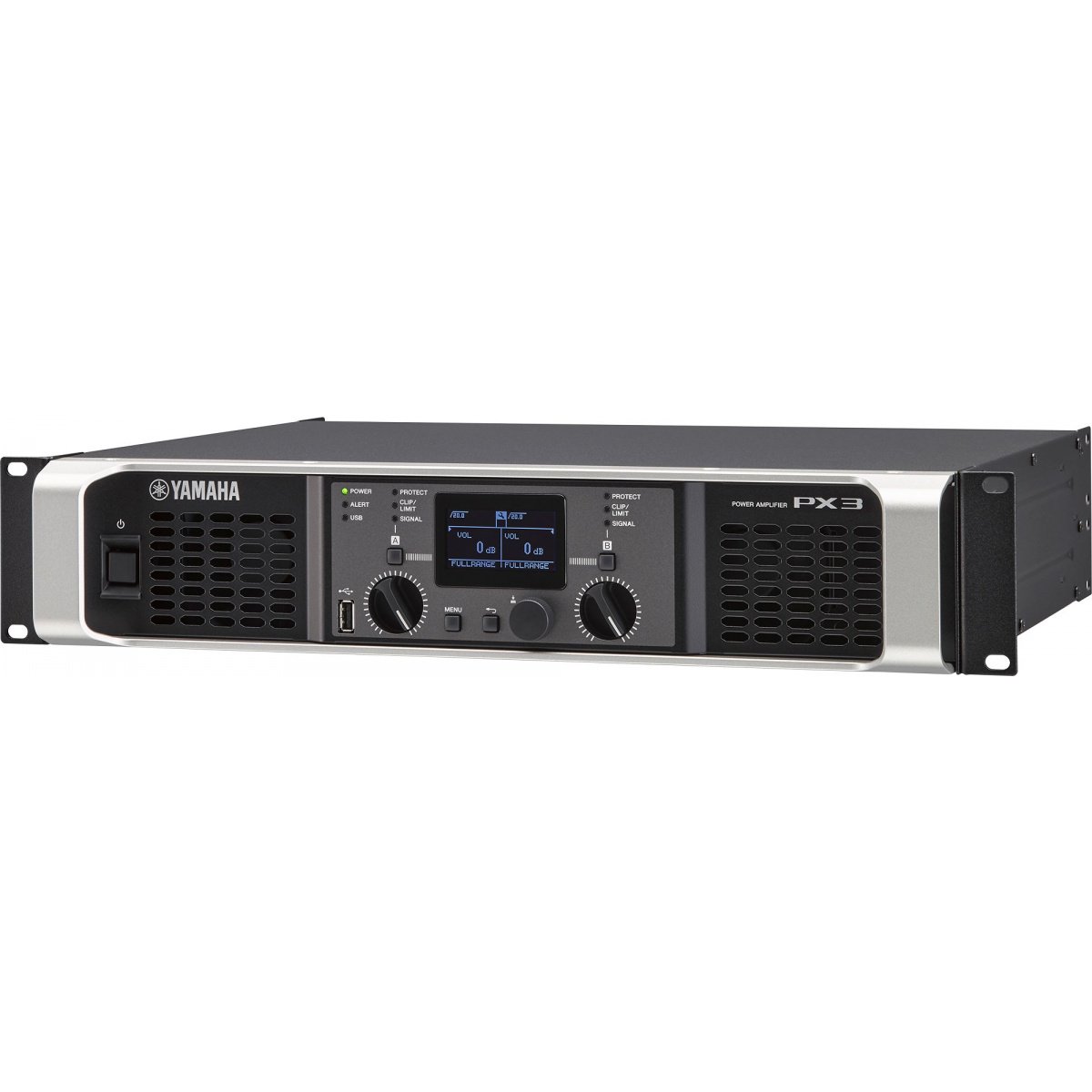

YAMAHA POWER AMPLIFIER-PX3
₨ 12,750.00
PX3 Power Amplifiers
The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the A vast range of sound reinforcement environments. 300W x 2 at 8Ω / 500W x 2 at 4Ω.
2x 300W at 8Ω
2x 500W at 4Ω
Newly developed Class-D amplifier engine with a custom LSI
Flexible onboard PEQ, crossover, filters, delay, and limiter functions
Yamaha Speaker presets
Utlities for safe and secure operation
In stock
220V-240V models
Output power; 1kHz 8Ω – 300W x 2
Non-clip 20msec Burst 4Ω – 500W x 2
Both channels driven
2Ω – 300W x 2
8Ω/Power Boost Mode – 600W x 1
4Ω/Power Boost Mode – 1000W x 1
Total harmonic distortion – 0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
Frequency response – ±1.0dB (1W, 8Ω, 20Hz to 20kHz)
S/N ratio – 100dB (A-weighted, 8Ω, Gain setting = +14dBu)
Crosstalk – Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
Voltage Gain/Sensitivity
8Ω Volume max – 32.0dB/+4.1dBu (Gain setting: 32dB), 26.0dB/+10.1dBu (Gain setting: 26dB), 32.1dB/+4dBu (Gain setting: +4dBu), 22.1dB/+14dBu (Gain setting: +14dBu).
8Ω Volume max /Power Boost mode – 35.0dB/+4.1dBu (Gain setting: 32dB), 29.0dB/+10.1dBu (Gain setting: 26dB), 35.1dB/+4dBu (Gain setting: +4dBu), 25.1dB/+14dBu (Gain setting: +14dBu).
Power consumption – 160W (1/8 MAX power, 4Ω, Pink noise at all channels), 55W (4Ω, Idling)
